> Products
5V 1 One Channel Relay Module Low Level for SCM Household Appliance Control for arduino DIY Kit
- Product description: 原产地: China 省份: Guangdong 品牌: kt 型号: 原理: Please Select or input 用途: Please Select or input 尺寸: Please Select or input 防护特征: Please Select or input 触点负载: Please Sel
PRODUCT INTRODUCTION
The module uses genuine quality relay, normally open interfaces
Using SMD optocoupler isolation, driving ability, stable performance
The module can be high or low by a jumper setting trigger
Fault-tolerant design, even if the control line is broken, the relay will not operate
The power indicator (green), the relay status indicator (red)
The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
- Maximum load: AC 250V/10A, DC 30V/10A
- Trigger current: 5mA
- Working voltage: 5V
- Module size: 50 x 26 x 18.5mm (L x W x H)
- DC+: positive power supply (VCC)
- DC-: negative power supply (GND)
- IN: can be high or low level control relay
- NO: normally open relay interface
- COM: Common Interface Relays
- NC: normally closed relay interface
- It is low level trigger when jumper connect to LOW pin
- It is high level trigger when jumper connect to HIGH pin
-
PREVIOUS：5V Four 4 Channel Relay Shield Module Control ExpansionBoard for arduino Diy Kit

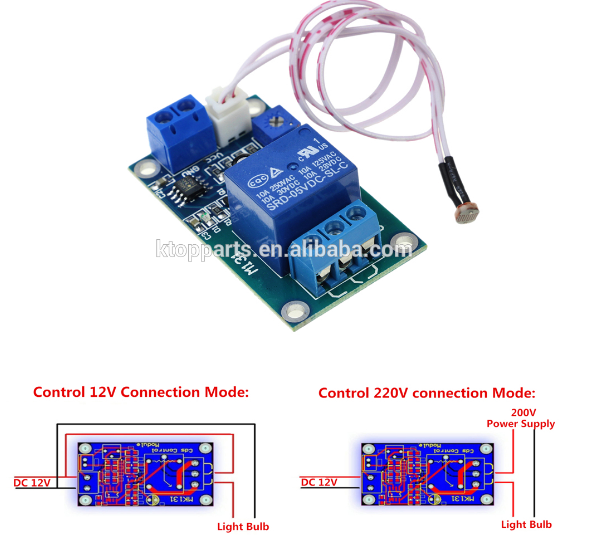

NEXT：DC 5V / 12V Light Control Switch Photoresistor Relay Module Detection Sensor brightness XH-M131 Automatic Control Module
