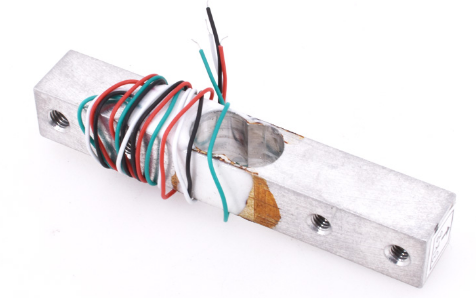

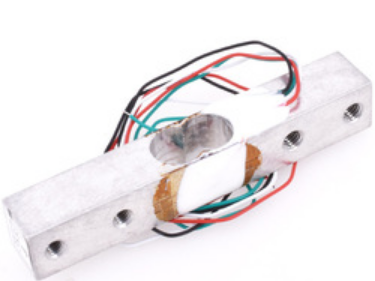

YZC-131 YZC131 1Kg 5kg 10kg 20kg 4 Hole Mini Electronic Scale Sensor Load Cell 5 to 10V
- Product description: 长宽高 18 CM X 15 CM X 10 CM / Piece/Pieces 毛重 0.04 KG / Piece/Pieces
PRODUCT INTRODUCTION
YZC-131 YZC131 1Kg 5kg 10kg 20kg 4 Hole Mini Electronic Scale Sensor Load Cell 5 to 10V
Feature:
Four lead wires, easy to use, plus driving voltage 5-10V, force changes in the output voltage signal directly.
Installation: Sensor end through the screw hole fixed and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage.
Specification:
Model: YZC-131
Dimensions: 60x13x13mm/2.36 x 0.51 x 0.51""(L x W x H)
Rated Load: 3 (kg)
Rated output: 1.0 ± 0.15mV / V
Nonlinear: 0.03% F.S
Hysteresis: 0.03% F.S
Repeatability: 0.03% F.S
Creep (5 minutes): 0.05% F.S
Temperature Effect on Output: 0.003% F.S /°C
Temperature Effect on Zero: 0.02% F.S /°C
Zero Balance: ± 0.1000 mV / V
Input impedance: 1066 ± 20% Ω
Output impedance: 1000 ± 10% Ω
Insulation resistance: 2000 MΩ
Operating temperature range: -20 ~ 65°C
Recommended Operating Voltage: 5 VDC
Maximum operating voltage: 10 VDC
Material: Aluminum
Protection: IP65
Cable: 0.8 135 cm
Table size: 160 160 mm
